Swivel Scaffold Clip

Swivel Scaffold Clip

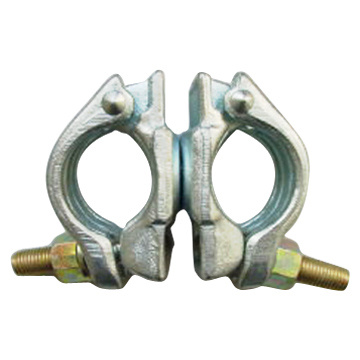

Swivel Coupler

• Joins scaffold tube having outside diameter of 48.3mm at any angle.

• Each half of the Coupler is interconnected with a swivel pin.

• Typically used for connecting bracing members. Also used for tension splicing of scaffold tubes.

• Tightening nuts suit standard Scaffold Spanner (23mm A/F).

• Replaceable 'T' bolts, nuts and washers.

• Robust design made from drop forged steel for durability and reliability.

• Hot dip galvanised fi nish for corrosion resistance.

• Complies with the requirements of AS1576.2.

• WLL = 6.25 kN against slip at tightening torque of 54 Nm.

• Can be used to resist tension or compression loads in bracing.

• Should not be used to support primary members. (Refer Clause 3.2.2 of AS1576.2-1991)
