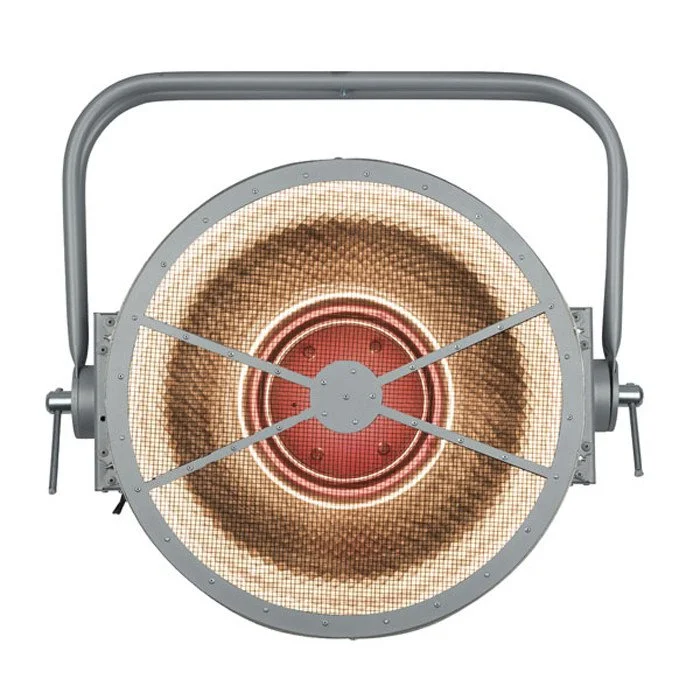

Showtec Vintage Blaze 55

Including Osram HPL-575 bulb

2 light Sources (Tungsten and RGB LED)

DMX mode and stand-alone control

DMX and powerCON in and out for easy daisy chain

Individual dimmer curves for LED and Tungsten

The Vintage Blaze ’55 is a great complement for the most creative lighting designs. With the Retro look the Vintage Blaze ’55 is ideal for live, theatre and TV applications. In addition to the tungsten lamp, the Vintage Blaze ’55 has a RGB LED Blaze background effect with strobe function and colour macros which gives an extra dimension to this fixture. The combination of both light sources can create great atmospheres on stage and can even be used for blinding FX. The Vintage Blaze ’55 can be used in all demanding DMX modes from 1 up to 11 channels. The manual option gives you the opportunity to run the fixture in stand-alone modus.

Specifications

Source

Light Source Type - Tungsten

Light Source Quantity - 1

Light Source Power - 575 W

LED Colour Type - RGB

Light Socket - GY9.5

Luminous Flux (Total) - 15000 lm

Control and Programming

Control Mode - Built-in Program, DMX, Manual

DMX Channels - 1, 2, 4, 11

Protocols - DMX

Display - LCD

Dim Curve - Linear, Square, I-Square, S-Curve

Dynamic Effects

Dimmer - 0-100 %

Strobe - 0-20 Hz

Electrical Specifications and Connections

Power Supply - 240 V AC 50/60 Hz

Power Consumption - 640 W

Power Connector In - powerCON Blue

Power Connector Out - powerCON Grey

DMX Connector In - XLR 3P, XLR 5P

DMX Connector Out - XLR 3P, XLR 5P

Mechanical Specifications

Length (mm) - 435 mm (17.126″)

Height (mm) - 650 mm (25.591″)

Width (mm) - 505 mm (19.882″)

Weight - 11 kg (24.251 lb)

IP Rating - IP20 (indoor use only)

Housing - Aluminium

Colour - Silver

Rigging

Mounting Options - Clamp

Thermal Specifications

Maximum Ambient Temperature - 40 °C (104 °F)

Maximum Surface Temperature - 80 °C (176 °F)
