Jands DD8 MK2

Jands DD8 MK2

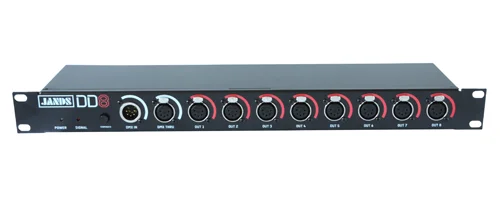

The Jands DD8-II is an opto isolated DMX-512 splitter designed to provide distribution of one DMX input to eight opto isolated DMX outputs. It includes a DMX "Thru" socket for connection to essential equipment that must maintain DMX signal should the power to the DD8 be lost, and a "Terminate" switch to provide DMX termination facilities for the DMX input.

Features

  • Eight (8) opto isolated DMX outputs

  • DMX "Thru" connector

  • Termination switch

  • High quality DMX connectors

  • Red LED power indication

  • Green LED DMX signal input indication

  • Protection of DMX control from faults on DMX inputs and outputs (Active / Neutral across DMX +/-)

  • IEC mains input with integral fuse

  • Universal 100-240VAC operation

  • 500V AC isolation
